Taizhou Kayondの機械類Co.、株式会社
| 起源の場所: | 江蘇、中国、CN;JIA |
|---|---|
| ブランド名: | KAD |
| 最小注文数量: | 1 |
| 価格: | $1,300-1,400 |
| フォークの長さ: | 1070mm | フォークの幅: | 550/680mm |
|---|---|---|---|
| 負荷センター: | 500mm | 重量を積みます: | 1500kg |
| バッテリー電圧: | 24V | バッテリー容量: | 80Ah |
| 負荷の高さ: | 3000mm | マストタイプ: | 2 Stage/3段階 |
| ドライブモード: | Walkieの雄牛 | 電源: | DCモーター |
| ミン 持ち上げ高さ: | 2080mm | 全体的な寸法: | 1770x850x2080mm |
| 重さ: | 553kg | 速度の運転: | 5.0/5.0 MM/S |
| 持ち上げ速度: | 140/135 MM/S | ||

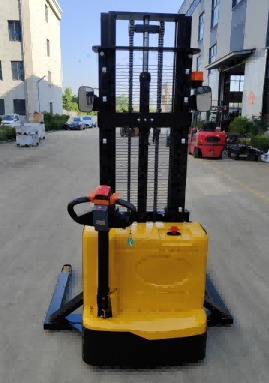

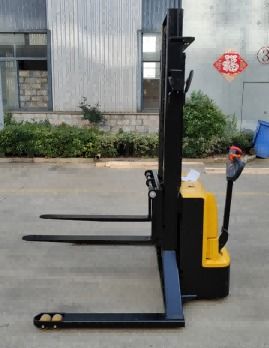

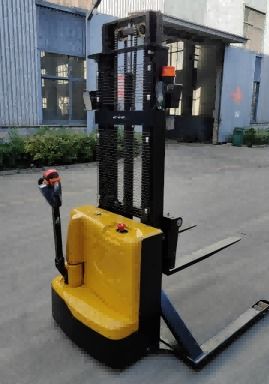

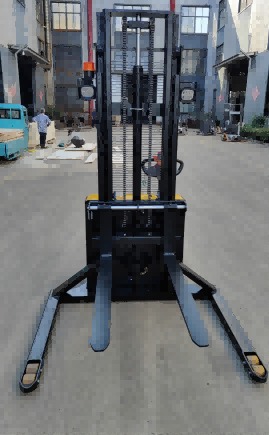

| ハイライト: | Electric pallet stacker 1.5 ton,Walkie stacker 3m lift height,24V battery electric stacker |
||
| Attribute | Value |
|---|---|
| Condition | New |
| Fork Length | 1070mm/customized |
| Fork Width | 550/680mm/customized |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising |
| Terrain Adaptability | Indoor Flooring |
| Load Center | 500 mm |
| Load weight | 1500KG |
| Battery | 24V/80Ah |
| Battery type | Lead acid battery |
| Load height | 3000mm |
| Warranty | 1 Year/2000 Working Hours, 1 Year |
| Mast | 2 Stage/3 Stage |
| Loading Capacity | 1500kg |
| Drive mode | Walkie Steer |
| Power Source | DC MOTOR |
| Core Components | Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine |
| Min. Lifting Height | 2080mm |
| Overall Dimensions | 1770(L)*850(w)*2080(h) |
| Weight (KG) | 553 kg |
| Model | CDDW10 CDDW15 | |||
|---|---|---|---|---|
| Drive system | Battery | |||
| Driving mode | Walkie | |||
| Load Capacity | Q | KG | 1000 | |
| Load Center | C | MM | 500 | |
| Weight (With battery) | KG | 480/495/515/535 | ||
| Wheels Material | PU | |||
| Lifting Height | H3 | MM | 1600/2000/2500/3000/4000 | |
| Lowest Mast | H1 | MM | 2080/1580/1830/2080/1580 | |
| Max.Height when operating | H4 | MM | 2080/2730/3230/3730/4750 | |
| Min.Height of Fork | H13 | MM | ≤90 | |
| Length | L1 | MM | 1770 | |
| Width | B1 | MM | 850 | |
| Fork Length | L | MM | 1070 | |
| Wheelbase | Y | MM | 1250 | |
| Fork Outside Width | B5 | MM | 680 | |
| Fork Inside Width | MM | 305 | ||
| Min.Turning Radius | WA | MM | 1390 | |
| Driving Speed (Empty/Full Load) | MM/S | 5.0/5.0 | ||
| Lifting Speed (Empty/Full Load) | MM/S | 140/135 | ||
| Descending Speed (Empty/Full Load) | MM/S | 150/155 | ||
| Max.Gradient (Empty/Full Load) | ° | 7/5 | ||
| Brake | Electromagnetic brake | |||
| Driving Motor | KW | DC/0.75 | ||
| Lifting Motor | KW | DC/2.2 | ||
| Battery Capacity | V/Ah | 24/80/100;Li/gel | ||
