Taizhou Kayondの機械類Co.、株式会社
| 最小注文数量: | 1 |
|---|---|
| 価格: | 3065 |
| モデル番号: | CDD2030 | 負荷容量: | 1-2T |
|---|---|---|---|
| 負荷センター: | 500mm | リフトの高さ: | 3000mm |
| バッテリー容量: | 24v/210Ah | タイヤタイプ: | PUの車輪 |
| 回転半径: | 1738/2099mm | パッケージサイズ: | 218x90x213cm |
| フォークのサイズ: | 1220*100*40mm | 地上高: | 30mm |
| 速度の運転: | 4km/h | 勾配: | 3°/5° |
| 駆動モーター: | 1.2kw | リフティングモーター: | 2.2kw |
| 全体的なサイズ: | 2170*1570*2100mm | ||
| ハイライト: | Customized Electric Pallet Stacker,DC Motor Pallet Stacker,PU Wheel Balance Forklift |
||

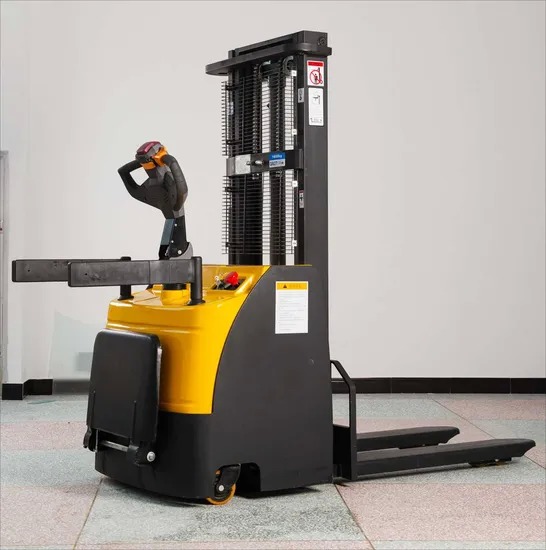

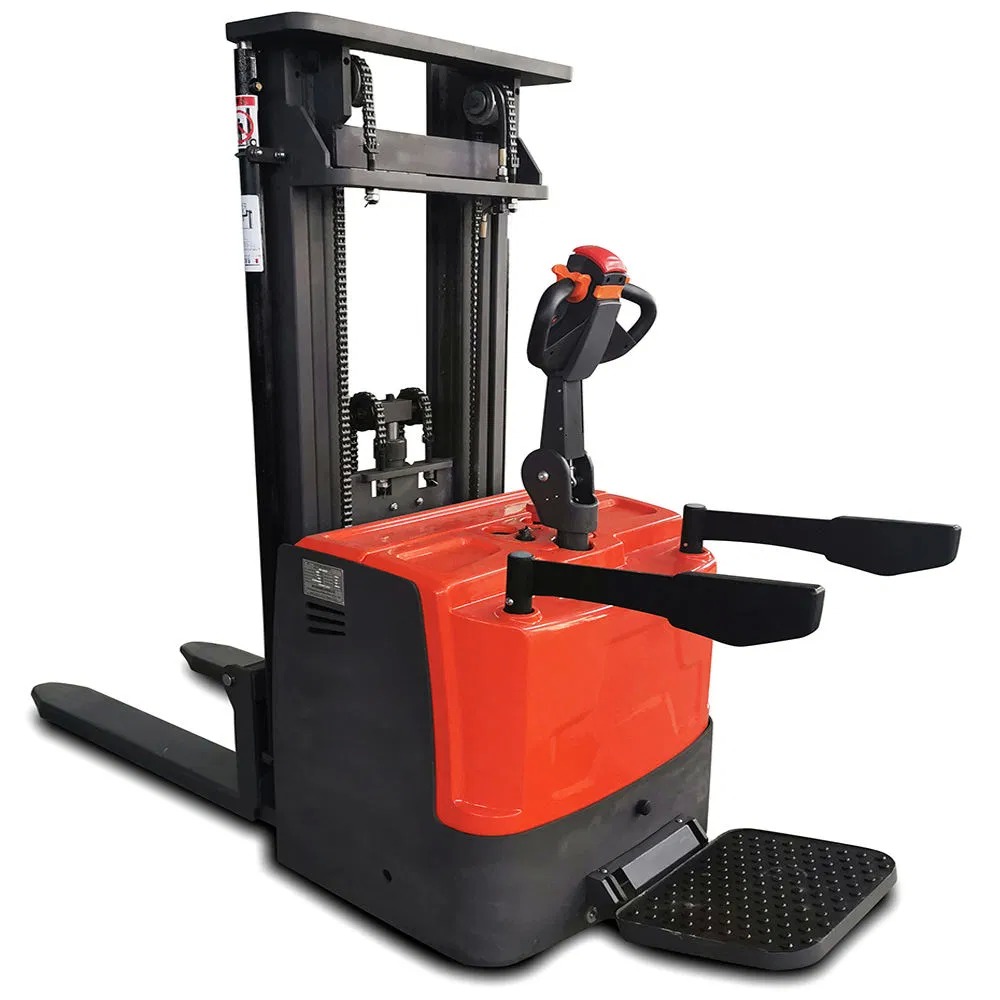

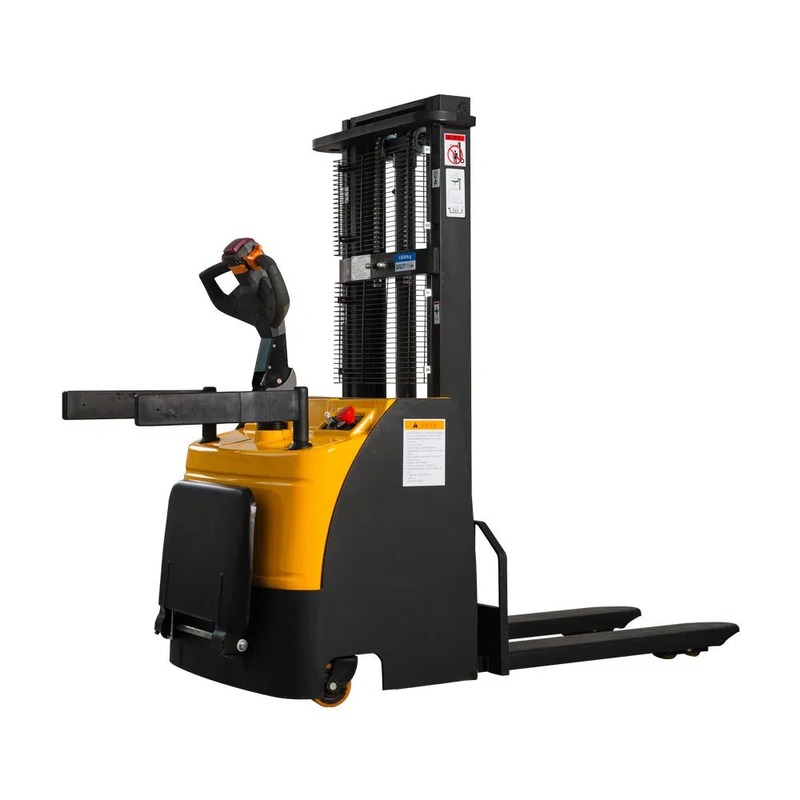

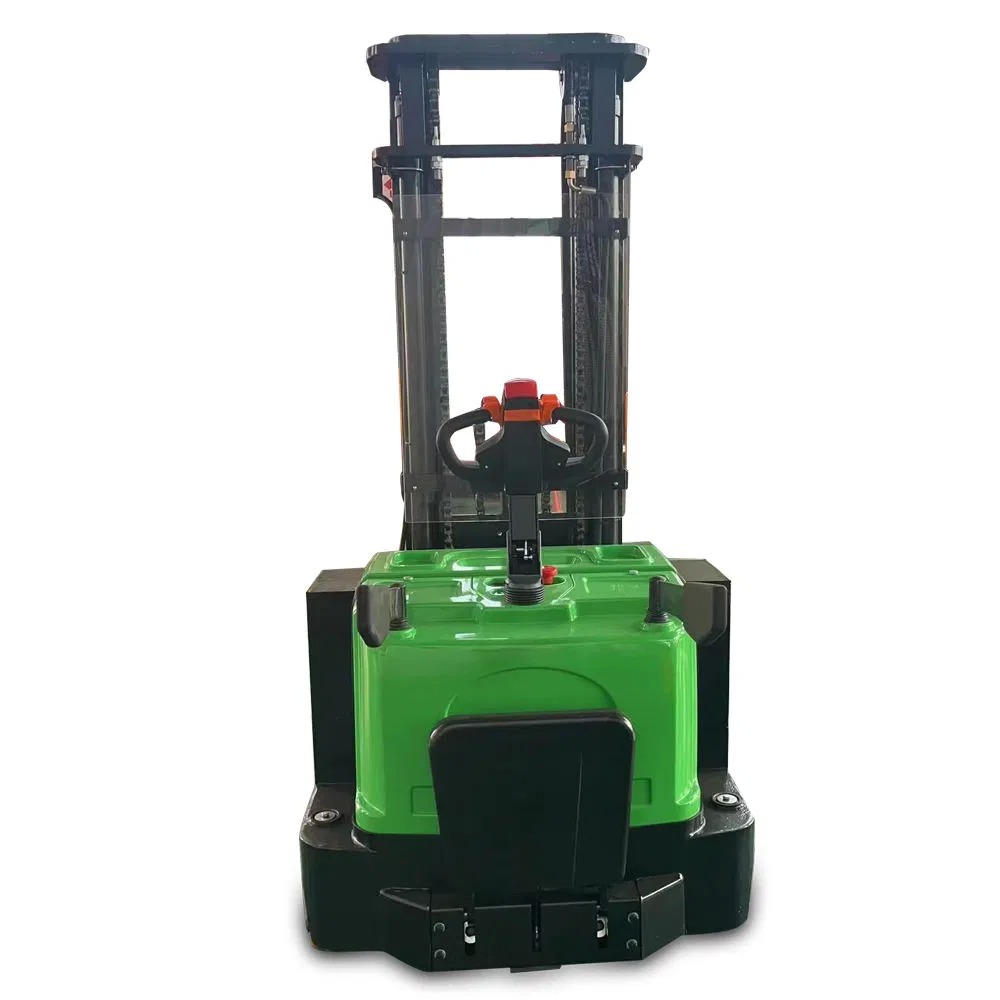

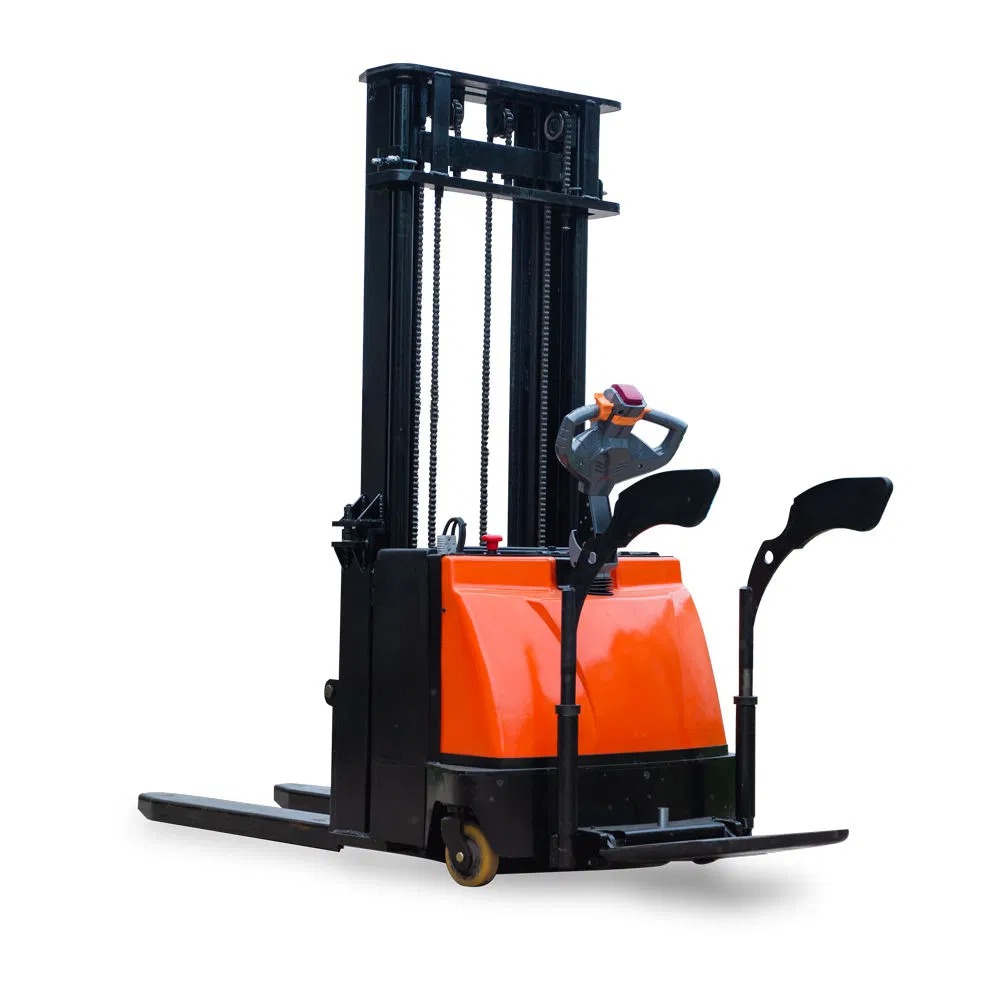

The full electric pallet stacker is designed for efficient loading, stacking, and short-distance palletizing operations. Its simple structure offers flexible operation with excellent micro-control capabilities and high safety performance. Ideal for working in confined spaces, this stacker can access ship cabins, carriages, and containers for palletized goods handling.
| Model | CDD1030 | CDD1530 |
|---|---|---|
| Load Capacity | 1000 kg | 1500 kg |
| Lifting Height | 3000 mm | 3000 mm |
| Load Center | 500 mm | 500 mm |
| Fork Size | 1220×100×40 mm | 1220×100×40 mm |
| Ground Clearance | 30 mm | 30 mm |
| Driving Speed (Full Load) | 4 km/h | 4 km/h |
| Battery | 24V/210A | 24V/210A |
| Overall Dimensions | 2170×1570×2100 mm | 2170×1570×2100 mm |
Brand: KAD - Domestic premium control handle with functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.
Combined key, battery indicator, and emergency switch. Functional and aesthetically designed for comfortable operation.
Strong cylinder and chain system ensures smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
