Taizhou Kayondの機械類Co.、株式会社
| 最小注文数量: | 1 |
|---|---|
| 価格: | 3145 |
| モデル番号: | CDD2035 | 負荷容量: | 1-2T |
|---|---|---|---|
| 負荷センター: | 500mm | リフトの高さ: | 3500mm |
| バッテリー容量: | 24v/210Ah | タイヤタイプ: | PUの車輪 |
| フォークの幅: | 550/680mm | 回転半径: | 1738/2099mm |
| フォークの長さ: | 1070mm | 速度の運転: | 4 Km/h |
| 勾配: | 3°/5° | 駆動モーター: | 1.2 kW |
| リフティングモーター: | 2.2 kW | 全体的なサイズ: | 2170*1570*2100mm |
| 重さ: | 960.000 kg | ||

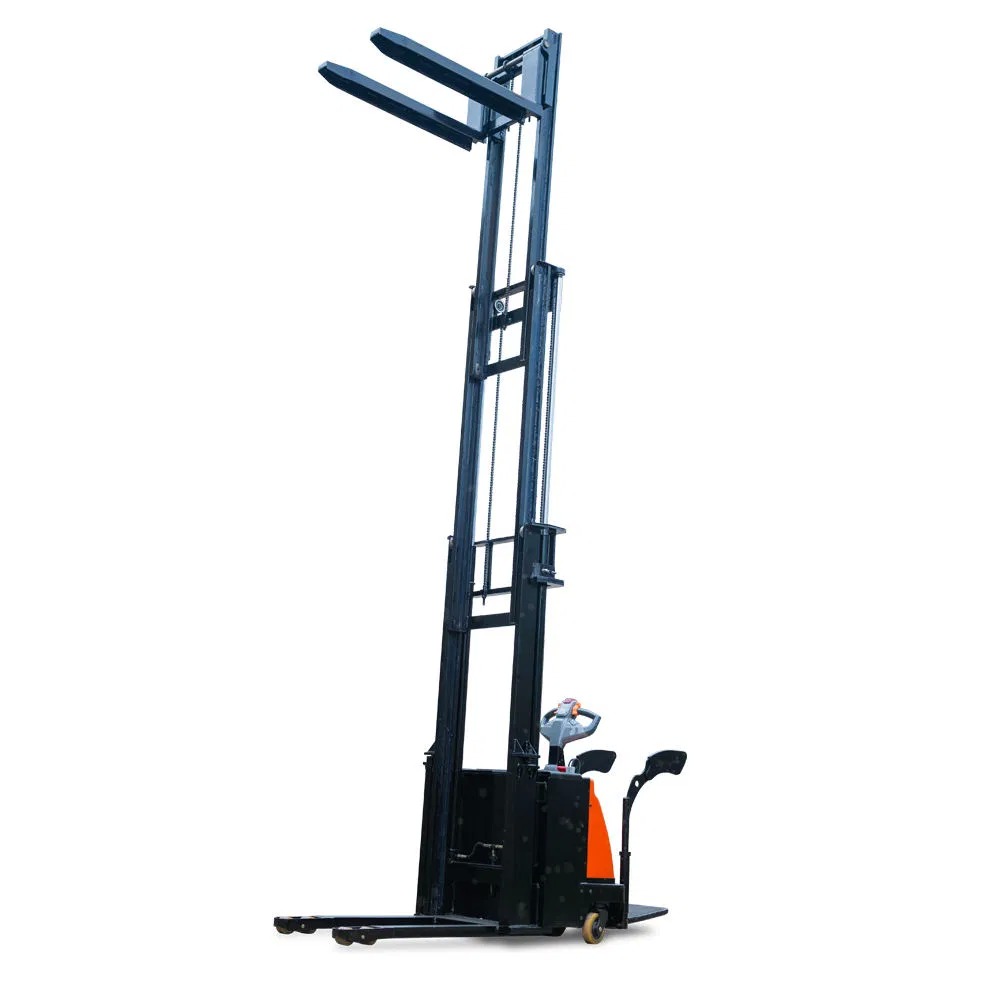

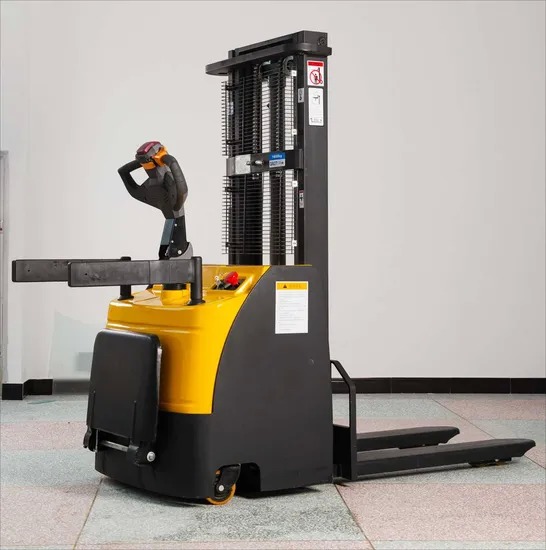

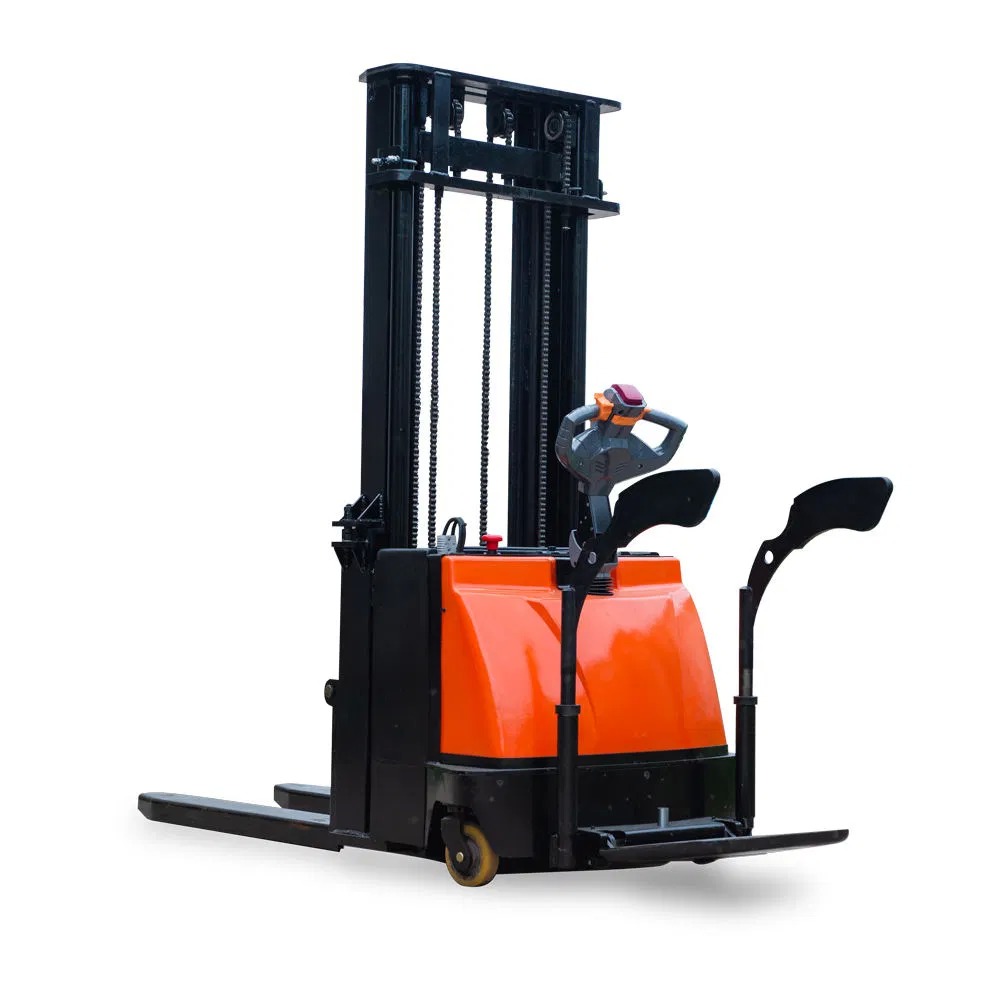

| ハイライト: | 500mm Load Center Electric Pallet Stacker,1070mm Fork Length Electric Forklift,1738/2099mm Turning Radius Pallet Stacker |
||
| Model | CDD1030 | CDD1530 |
|---|---|---|
| Load Capacity | 1000 kg | 1500 kg |
| Lifting Height | 3000 mm | 3000 mm |
| Load Center | 500 mm | 500 mm |
| Fork Size | 1220×100×40 mm | 1220×100×40 mm |
| Ground Clearance | 30 mm | 30 mm |
| Pedal Length | 410 mm | 410 mm |
| Handler Height | 1490 mm | 1490 mm |
| Outer Distance Between Forks | 685 mm | 685 mm |
| Inner Distance Between Forks | 345 mm | 345 mm |
| Tyre type | Polyurethane | Polyurethane |
| Control Way | Handler | Handler |
| Speed Regulation Way | Stepless Speed Regulation | Stepless Speed Regulation |
| The Min. Turning Radius | 1500 mm | 1500 mm |
| Driving Speed with Full Loads | 4 km/h | 4 km/h |
| Gradient | 3°/5° | 3°/5° |
| Battery | 24V/210A | 24V/210A |
| Driving Motor | 1.2 KW | 1.2 KW |
| Lifting Motor | 2.2 KW | 2.2 KW |
| Tyre Size | 300/250 mm | 300/250 mm |
| Overall Size | 2170×1570×2100 mm | 2170×1570×2100 mm |
| Weight | 900 kg | 900 kg |
| Reference Working Time | 6 h | 6 h |
| Increased height each tonnage | 1600/2000/2500/3000/3500 mm | 1600/2000/2500/3000/3500 mm |
| Max height | 2100/1600/1850/2100/2350 mm | 2100/1600/1850/2100/2350 mm |
