ハイライト: | CE certified vacuum lifting equipment,stone panel steel board lifter,marble glass vacuum lifting machine |
---|

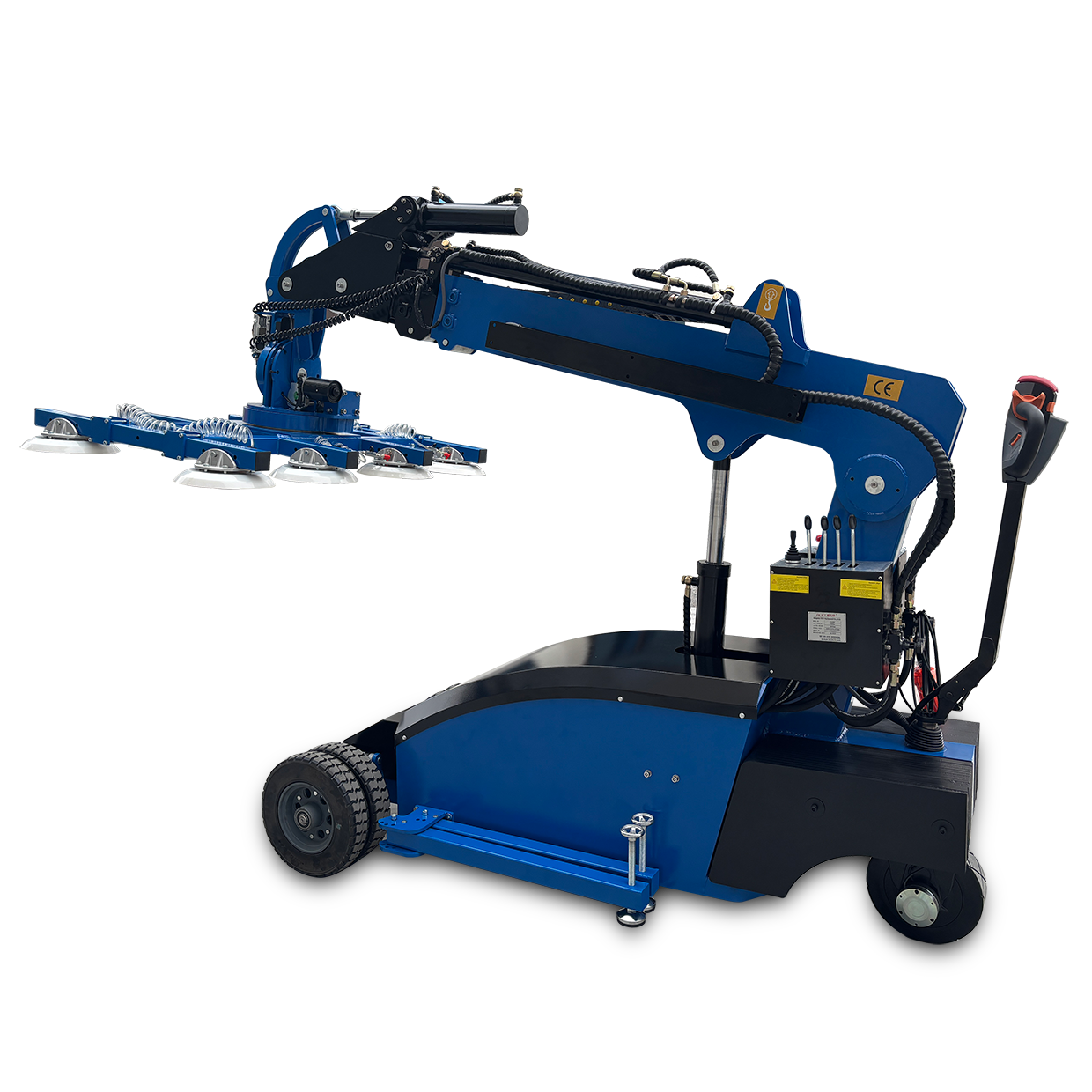

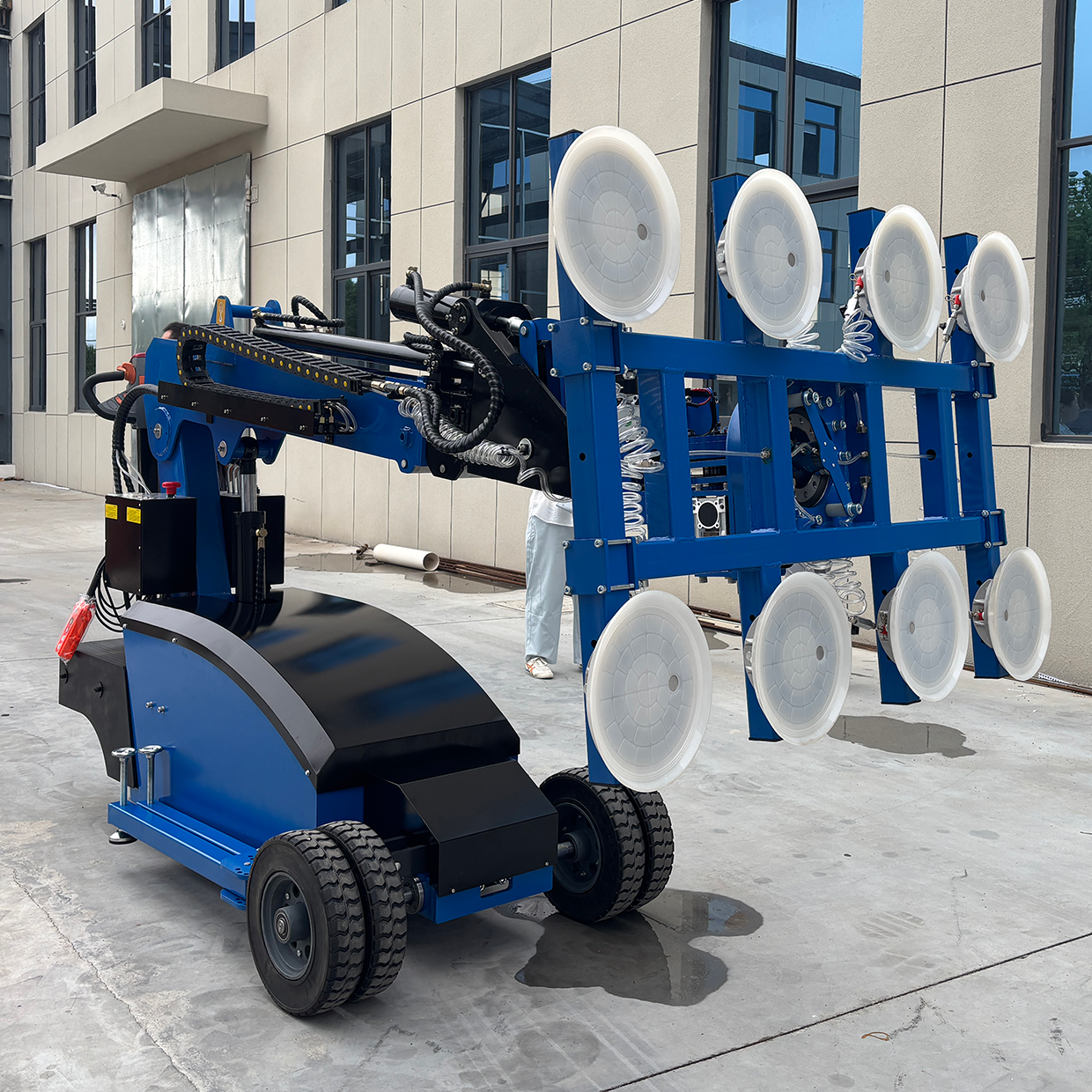

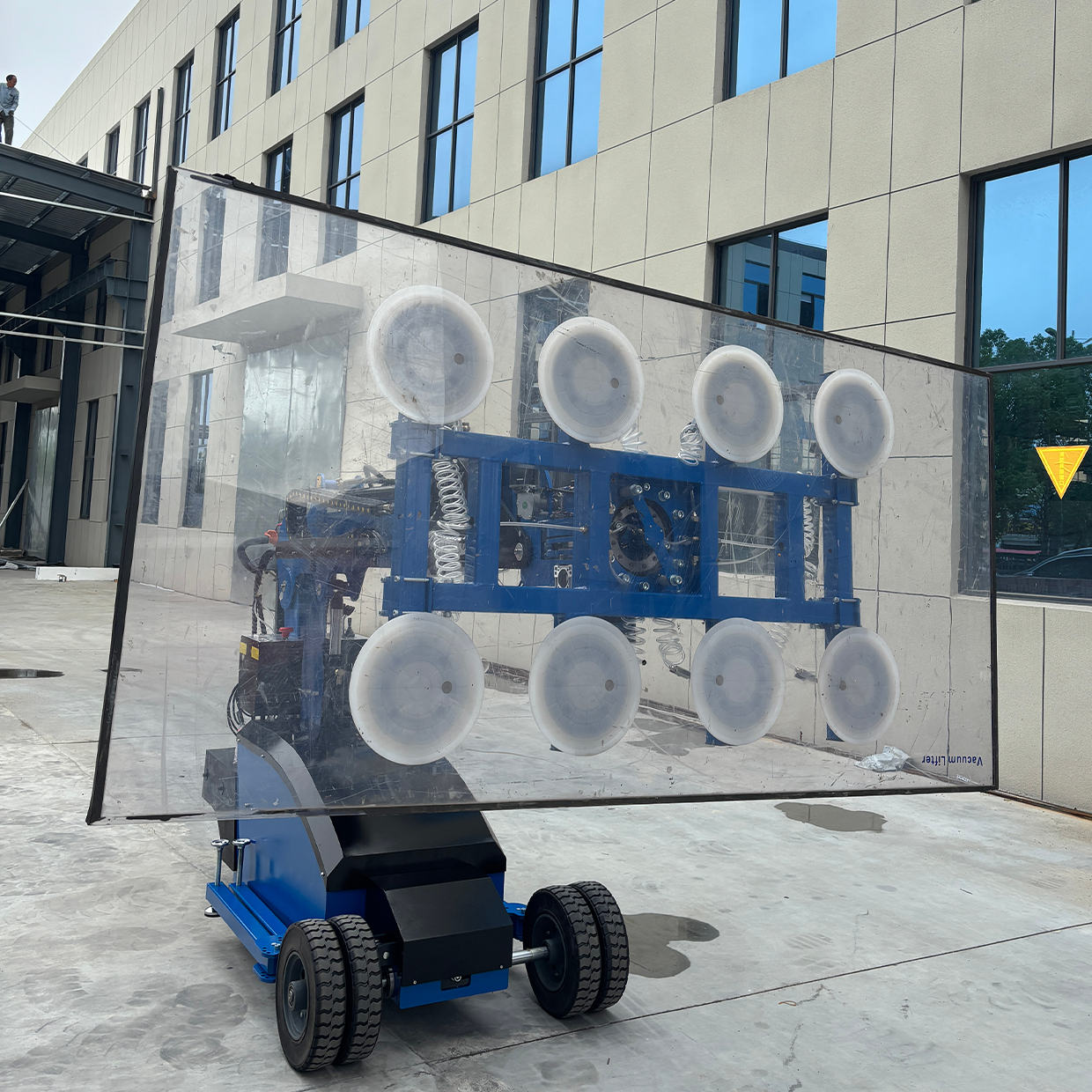

Our vacuum glass lifter robot is a modern solution designed to simplify material handling and installation. It can easily lift and transport glass panels, stone slabs, wooden boards, and metal sheets, greatly improving efficiency on job sites. With built-in safety features such as a vacuum alarm, automatic braking, emergency stop, charging protection, counterweight system, and sturdy support legs, it ensures safe and stable operation. Also known as a glass lifting robot, vacuum suction lifter, electric glazing robot, or suction cup handling machine, it provides reliable performance for a wide range of industrial applications.
Click here to get latest price
If you have any questions for this Semi electric heavy-duty circular clamp ,please contact me as below,i will stand by 24 hours.Thanks
Model
|
/
|
GL600/800
|
Driving mode
|
/
|
Front Axle Drive
|
Max.Load
|
kg
|
600 /800
|

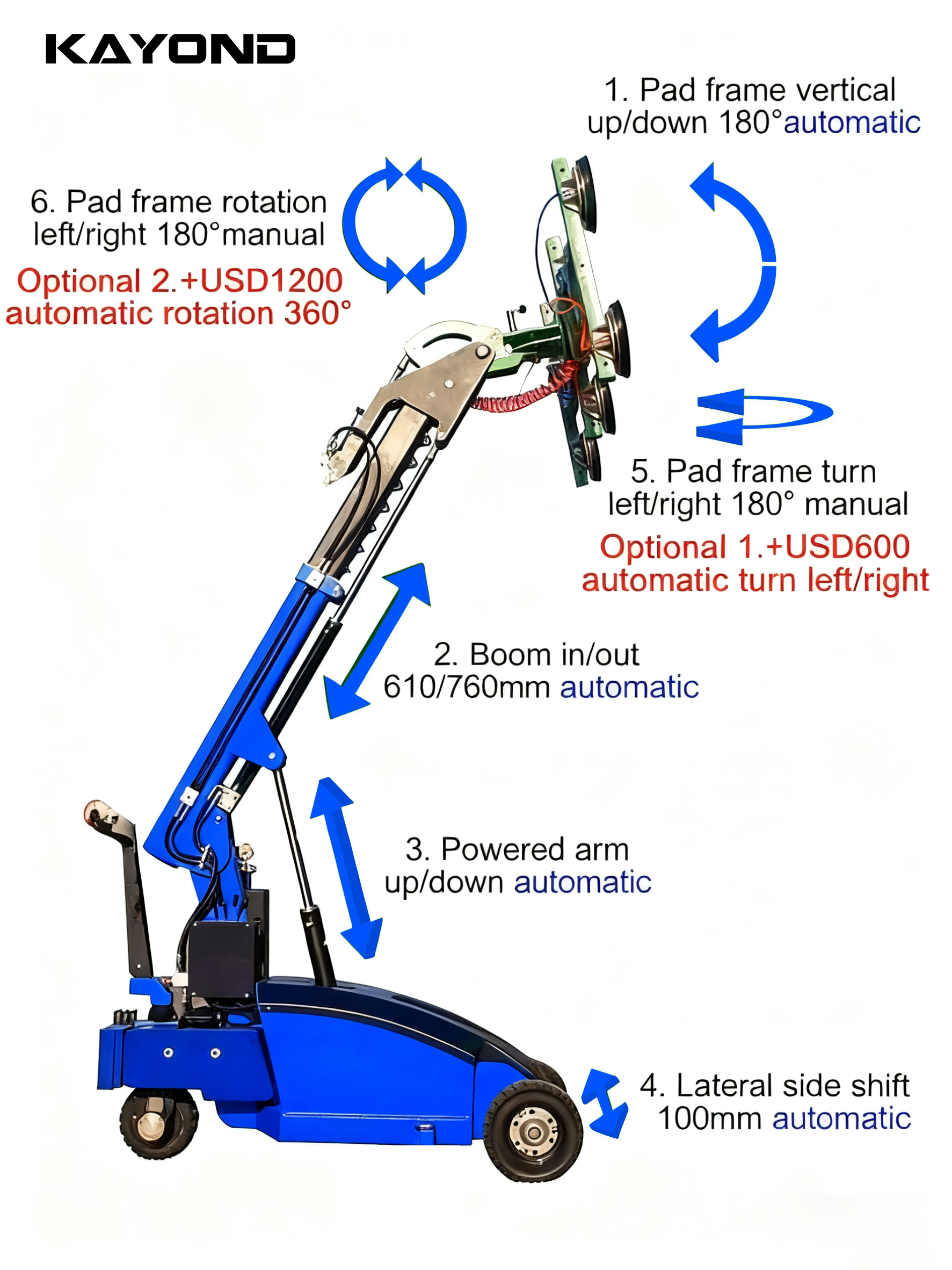

Rotating
|
°
|
Manual 360° (Automatic type for optional)
|
Turn to side
|
°
|
Manual 90° (Automatic type for optional)
|
Lifting Height
|
mm
|
3700 /4500/ 5000
|
Manipulation
|
/
|
Walkie Type
|
Power
|
/
|
Tractive-type Free Maintence Battery
|
Controling type
|
/
|
Stepless adjusting speed
|
Battery
|
V/Ah
|
2*12/120
|
Charger
|
V/A
|
24/18
|
Climbing gradient
|
%
|
15
|
Braking type
|
/
|
Electromagnetic braking
|
Driving Motor
|
V/W
|
24/2200 / 24/2500
|
Lifting Motor
|
V/W
|
24/2200
|
Packing Size
|
mm
|
2780*990*1750 / 3180*1100*1780
|
Packing Weight
|
kg
|
1850 / 2080
|
Front Wheel Size
|
mm
|
Φ466*195 (Pneumatic Tires)
|
Front Wheel Qty
|
pcs
|
2 ( 2+2 Dual wheel optional)
|
Rear Wheel Size
|
mm
|
Solid Φ400*100 ( Pneumatic tires for optional)
|
Rear Wheel Qty
|
pcs
|
2
|
Pads Size
|
mm
|
Φ300
|
Pads Qty
|
pcs
|
6/8
|
