Taizhou Kayondの機械類Co.、株式会社
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | KAD |
| 証明: | CE/ISO9001 |
| モデル番号: | CDD20 |
| 最小注文数量: | 1 |
| 価格: | $7199 |
| パッケージの詳細: | 鉄パレット+プラスチックフィルム |
| 受渡し時間: | 15労働日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力: | 50個/月 |
| 型番: | CDD20 | 耐荷重: | 1-2Tons |
|---|---|---|---|
| 負荷センター: | 500mm | リフトの高さ: | 1~10m |
| モデル: | 24V/280AH | フォークのサイズ: | 1220*100*40mm |
| 地上高: | 30mm | 回転半径: | 1500mm |
| 速度の運転: | 4km/h | 勾配: | 3°/5° |
| 駆動モーター: | 0.8kw | リフティングモーター: | 0.8kw |
| タイヤサイズ: | 300/250mm | 全体のサイズ: | 2570*1390*2200mm |
| 重さ: | 2800kg | ||
| ハイライト: | stand-on electric reach truck with side-shift,electric pallet stacker with EPS buffer,narrow aisle warehouse reach truck |
||

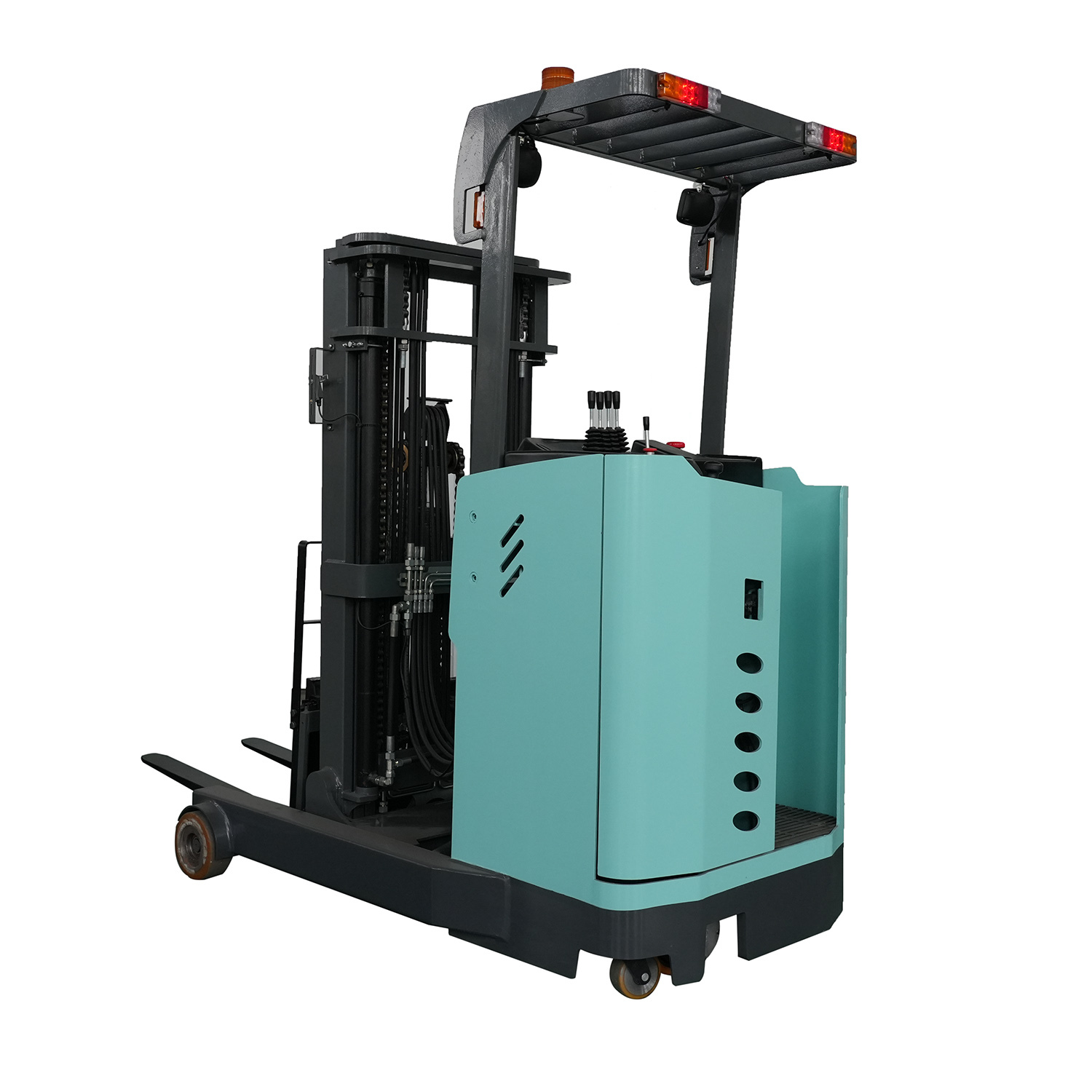

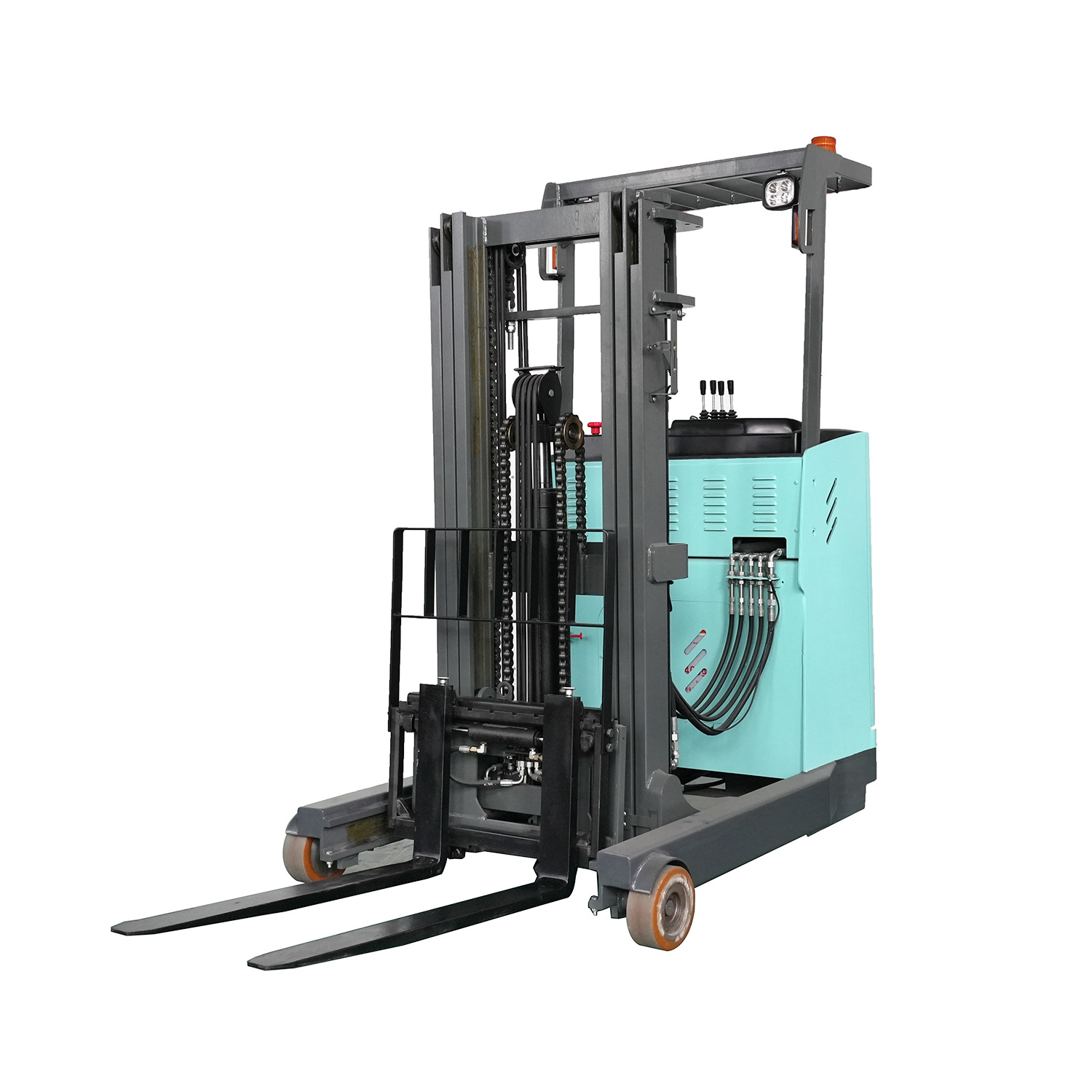

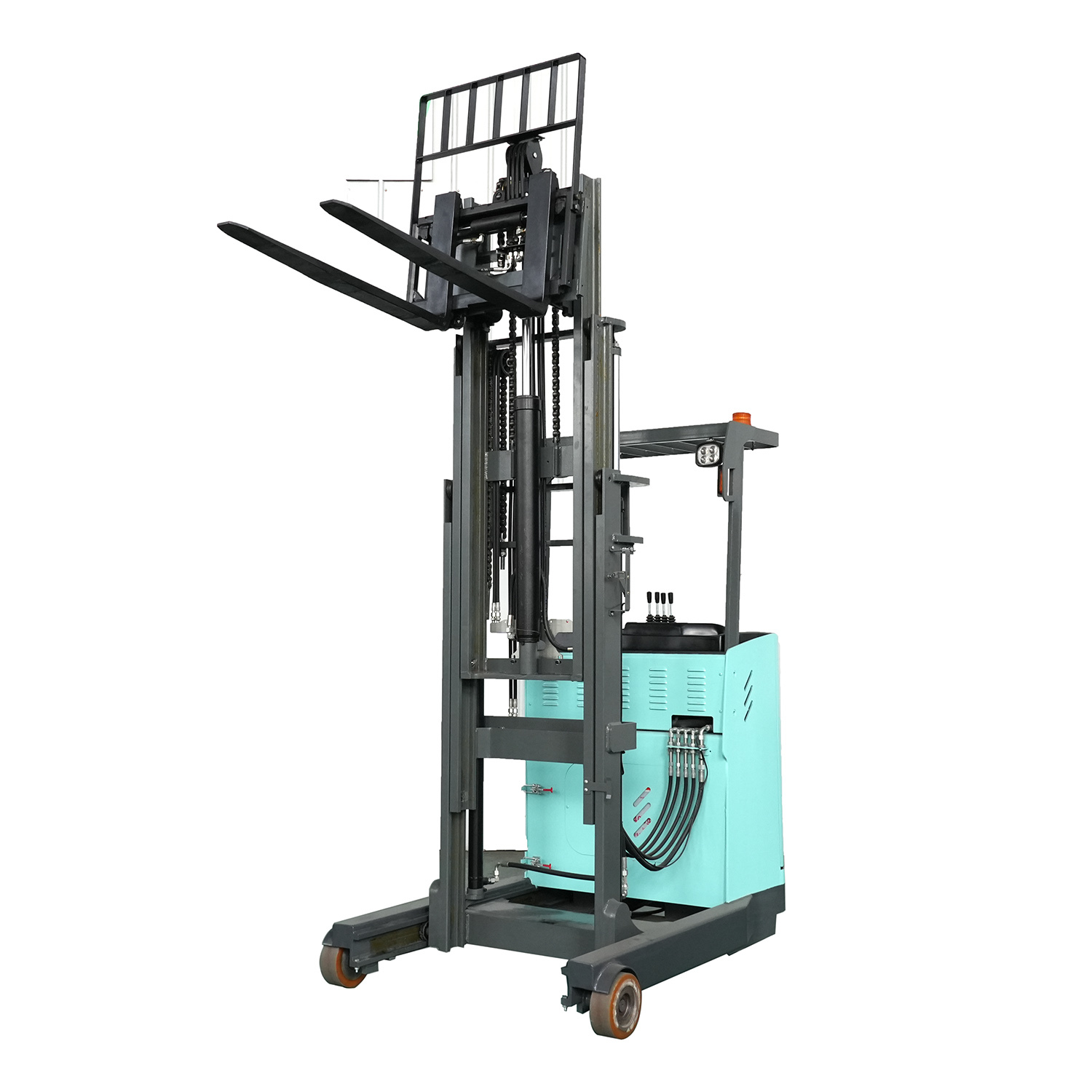

The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Load capacity at the highest point
|
kg
|
1000
|
1000
|
|
Weight
|
kg
|
2500
|
2800
|
|
Overall length (forks retracted)
|
mm
|
2570
|
2570
|
|
Overall width
|
mm
|
1100/1390
|
1100/1390
|
|
Static height of gantry
|
mm
|
2100
|
2100
|
|
Height of roof rack
|
mm
|
2200
|
2200
|
|
Moving forward distance
|
mm
|
600
|
600
|
|
Ground clearance
|
mm
|
45
|
45
|
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
|
Maximum gradient with full load
|
%
|
5
|
5
|
|
Load centre distance
|
mm
|
500
|
500
|
|
Type specification of travelling motor
|
-
|
ZQD13-1C
|
ZQD13-1C
|
|
Travelling motor 1min working current
|
A
|
195
|
195
|
|
Battery capacity
|
-
|
280Ah/24V
|
280Ah/24V
|
